Skunk2 Racing

Skunk2 Tuner Series Stage 2 Cam Shafts | K Series

Skunk2 Tuner Series Stage 2 Cam Shafts | K Series

SKU:305-05-0225

Regular price $699.99 USD
Regular price Sale price $699.99 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Free Shipping +$99 | VIP Members Discount | 30 Day Return | Financing Available

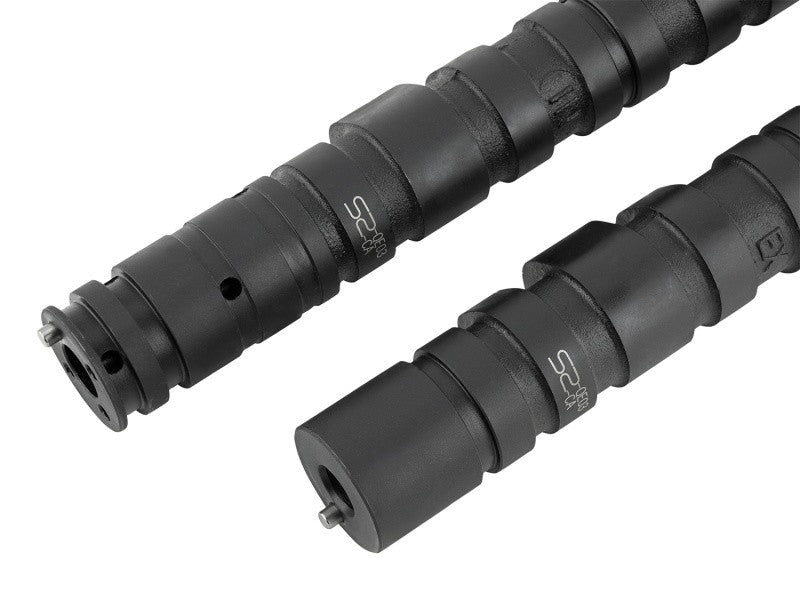

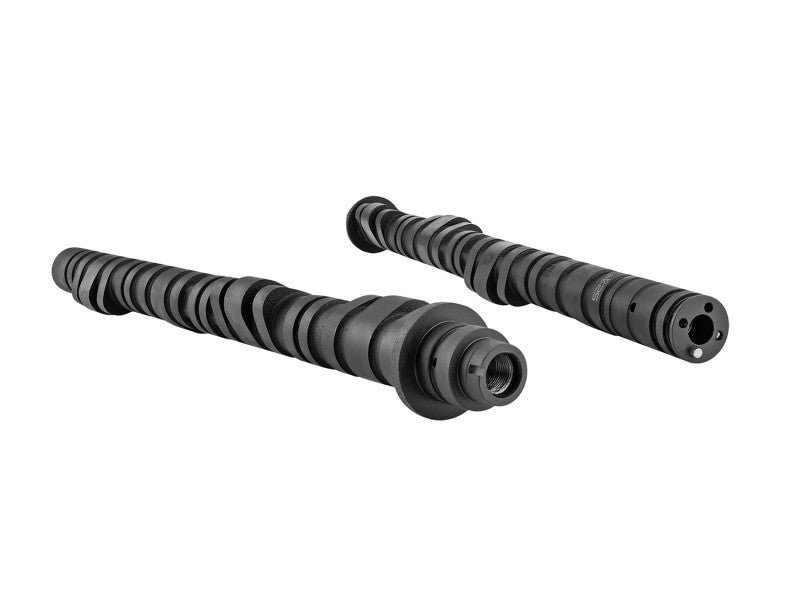

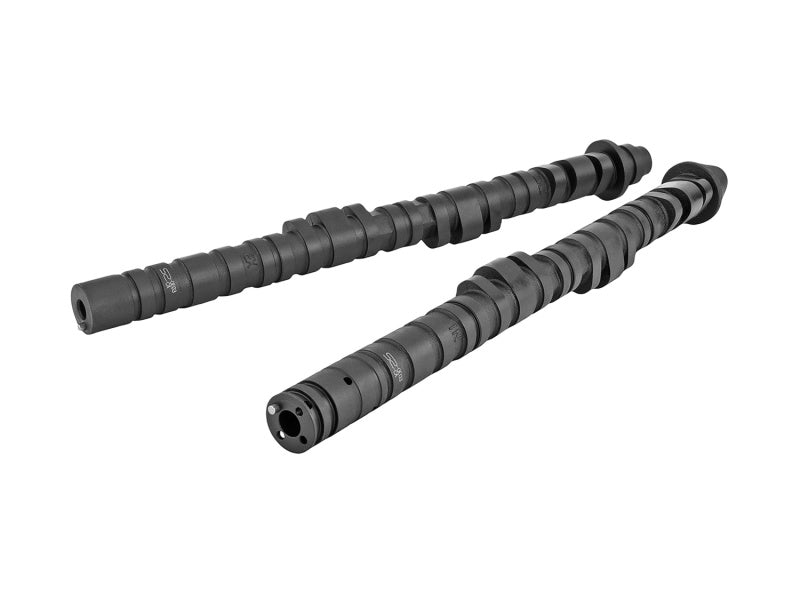

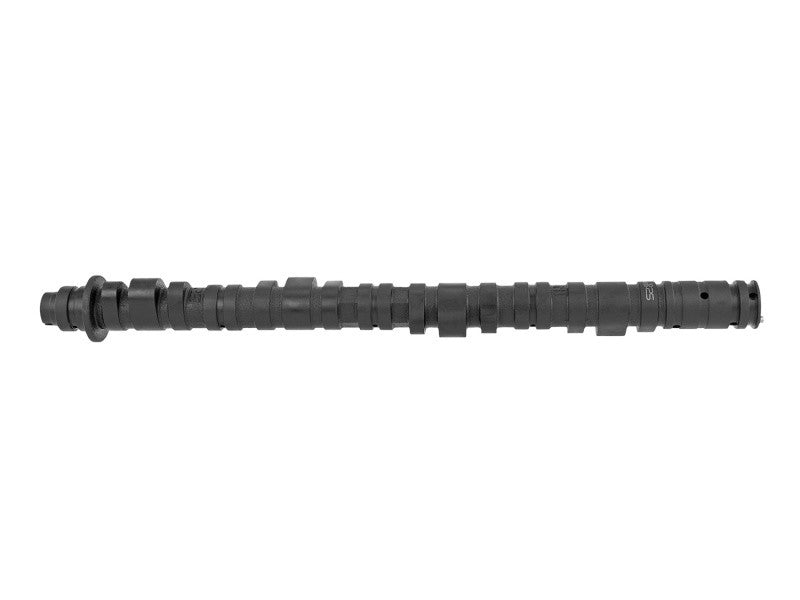

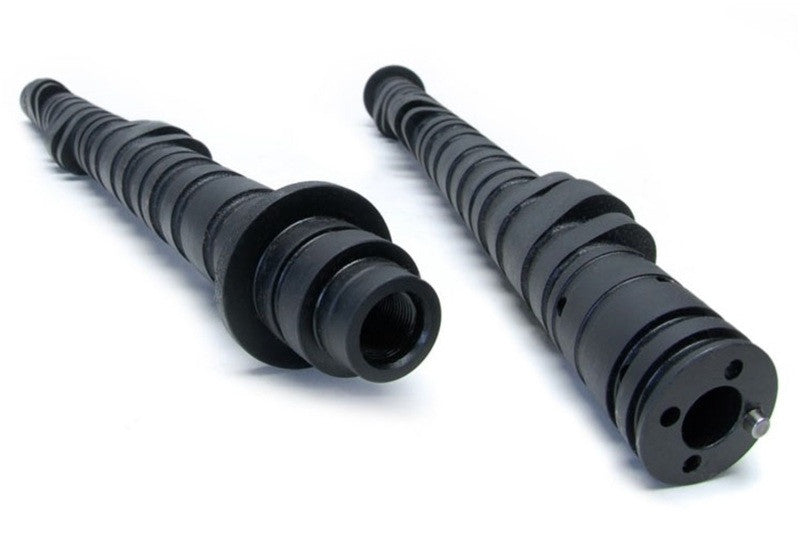

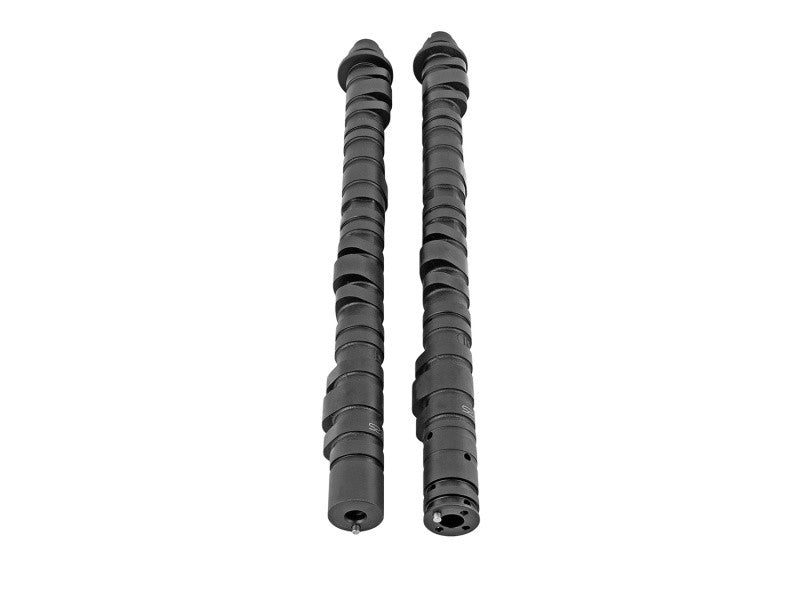

Skunk2 Tuner Series Honda/Acura K20A/ A2/ Z1/ Z3 & K24A2 DOHC i-VTEC 2.0L Stage 2 Cam Shafts Skunk2 Racing

Skunk2 Racing's "Tuner Stage 2" Camshafts are designed as a performance upgrade to lightly modified vehicles running the 3 Lobe VTEC K20A/ K20A2/ K20Z1/ K20Z3 and K24A2 engines or cylinder heads. These camshafts will outperform HOT factory cam swaps (mixing OEM cams) and Skunk2 Tuner Stage 1 camshafts from idle to redline with no loss in drivability. A great match for vehicles with intake manifold swaps, light cylinder head work, small changes in compression, intake, header, and exhaust or motors that have been turbo/supercharged and running up to 14 psi of boost. Tuner Stage 2's require a simple valve spring and retainer upgrade due to the additional lift, duration and increased RPM range. Ideal for hot street cars and road race cars.



Our Tuner Stage 2's incorporate Skunk2 Racing's cutting-edge Fast Ramp and AMAX features, which are responsible for increasing overall performance, producing unmatched response from idle to redline. You can expect optimized mid-range and top-end horsepower/torque with peak power moved up the RPM band, producing a seamless VTEC crossover!

  • Fast Ramp - The same technology used in Formula One racing, where seat timing is reduced, which results in additional cylinder pressure and more torque but without compromising valve-train longevity.
  • AMAX - A Skunk2 design that simply maximizes the area under the lift curve but without compromising reliability or valve-train stability. Skunk2’s profiles feature more duration than competitors’ at lifts above 1mm, resulting in greater efficiency and more power.



Independent tests have shown average gains to be in the neighborhood of +22-25 horsepower with larger gains in mid-range to upper RPM horsepower and torque! Tuner Stage 2 cams are an easy install but we highly recommend checking all critical clearances and degreeing for peak performance.

Required - Alpha Valve Springs (Upgrade to Pro Valve Springs Under Boost), Alpha Titanium Retainers, and Engine Management.





Camshafts Specifications


Intake: 272° / .535” (13.58mm) lift @ 0.000” lash
Exhaust: 276° / .496” (12.59mm) lift @ 0.000” lash
Intake Centerline - Variable
Exhaust Centerline - 107°
Valve Clearance (Intake / Exhaust) - .008” / .010”
RPM Range: 1,500 - 8,800
HP Gains: 22-25
Torque Gains: 18-20
i-VTEC Settings - Small Lobe 35° Advance/ Big Lobe 40° to 30° Advance
VTEC Crossover - 5,500 to 6,500 RPM


This Part Fits:



Year Make Model Submodel
2002-2006 Acura RSX Type-S
2004-2008 Acura TSX Base
2008 Honda Civic MUGEN Si
2006-2011 Honda Civic Si
